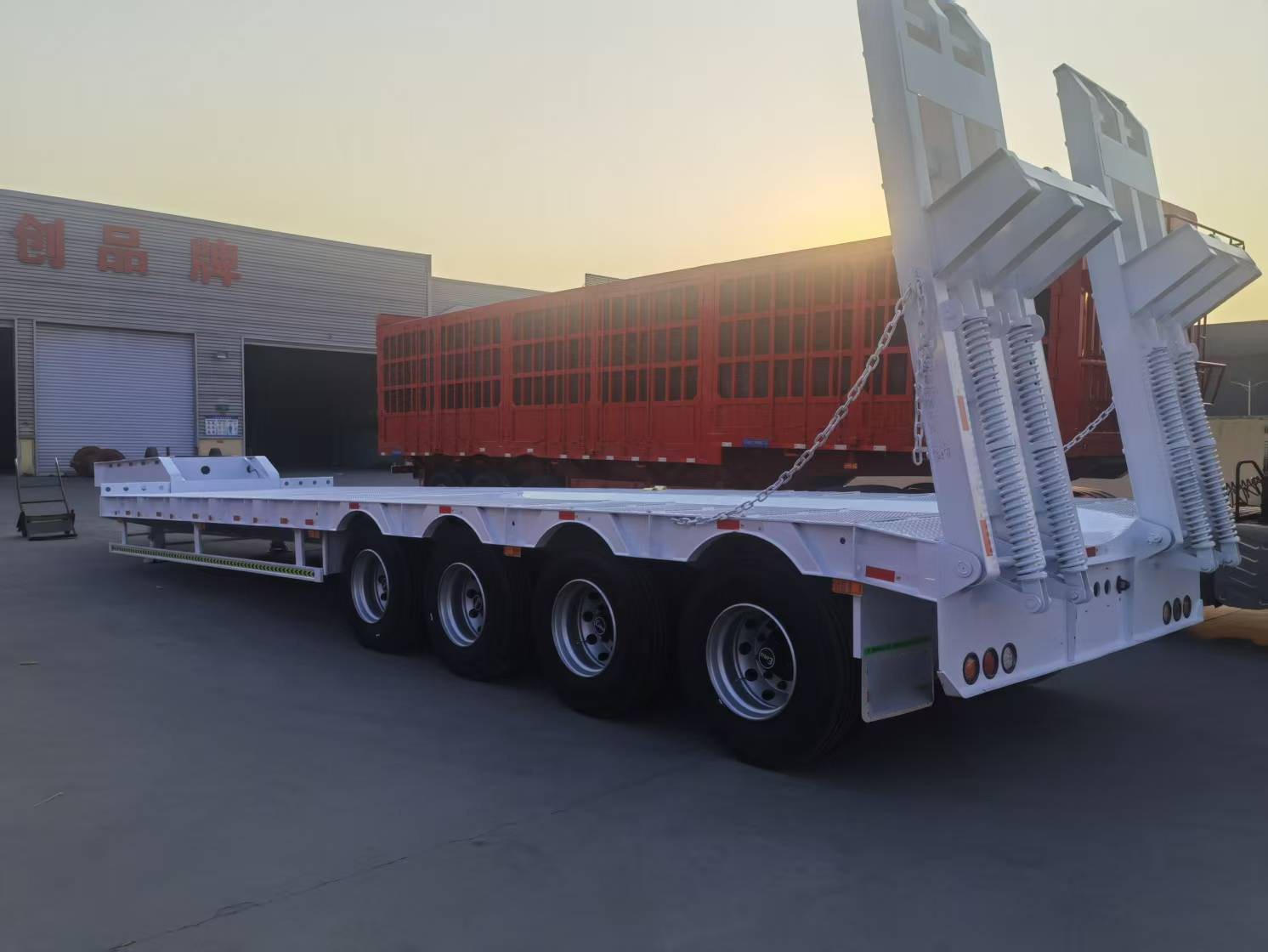

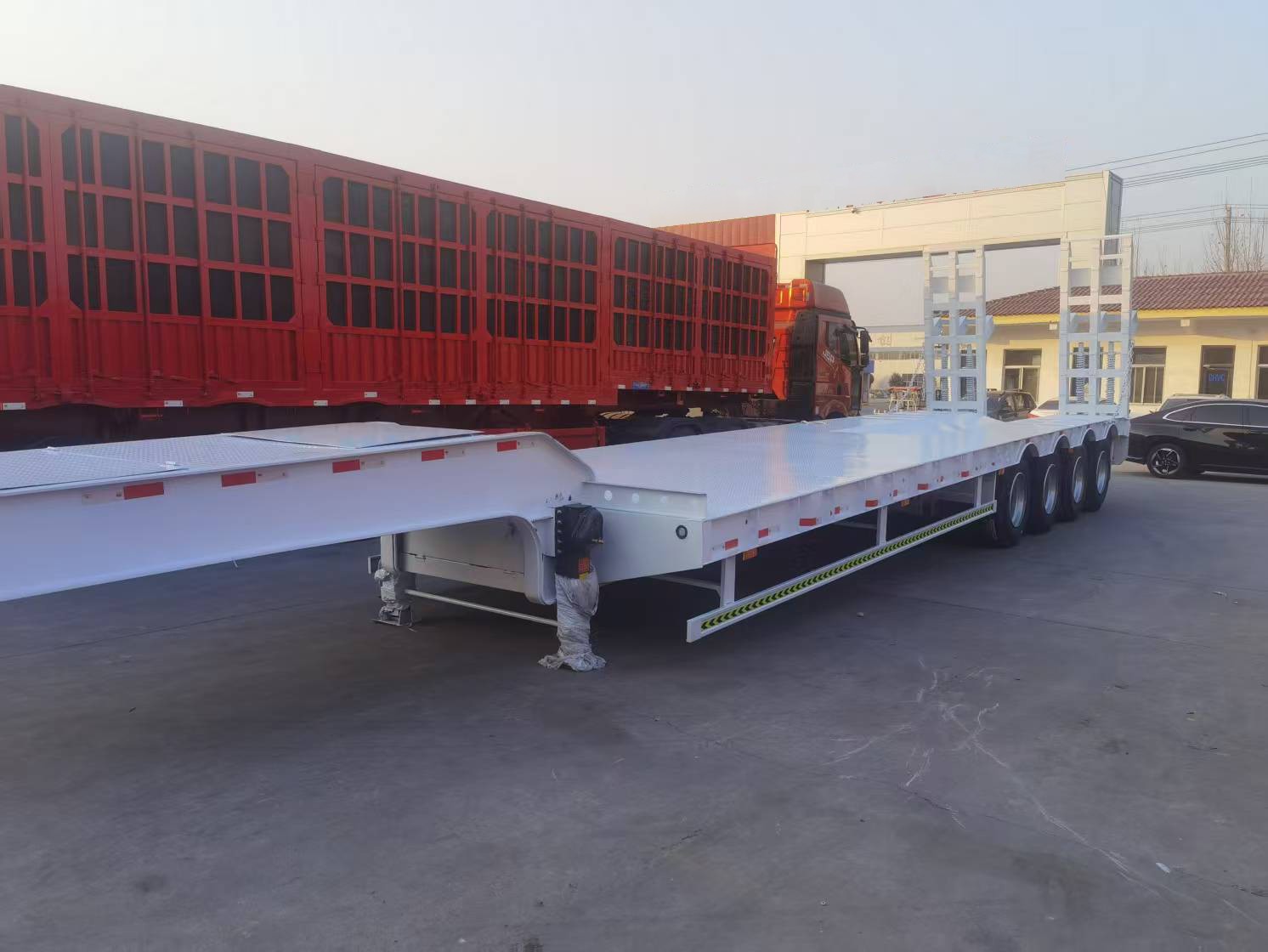

The 100 ton low bed trailer adopts a low chassis design, which makes the height of the cabin floor lower, which can effectively increase the load capacity of the vehicle. The 100 ton low bed truck trailer can carry more cargo and improve transportation efficiency.
The design of 100 Ton low bed truck is flexible and can be customized according to actual needs. Different carriage lengths, widths and heights can be selected according to the characteristics of the goods and transportation needs to adapt to different types of cargo transportation.
Overall dimension: 15800mm * 3000mm *3400mm
Loading capacity(T): 100 ton
Axle: 4 Axle low loader trailer
Rim: 8.0-20
Tire: 16 units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate

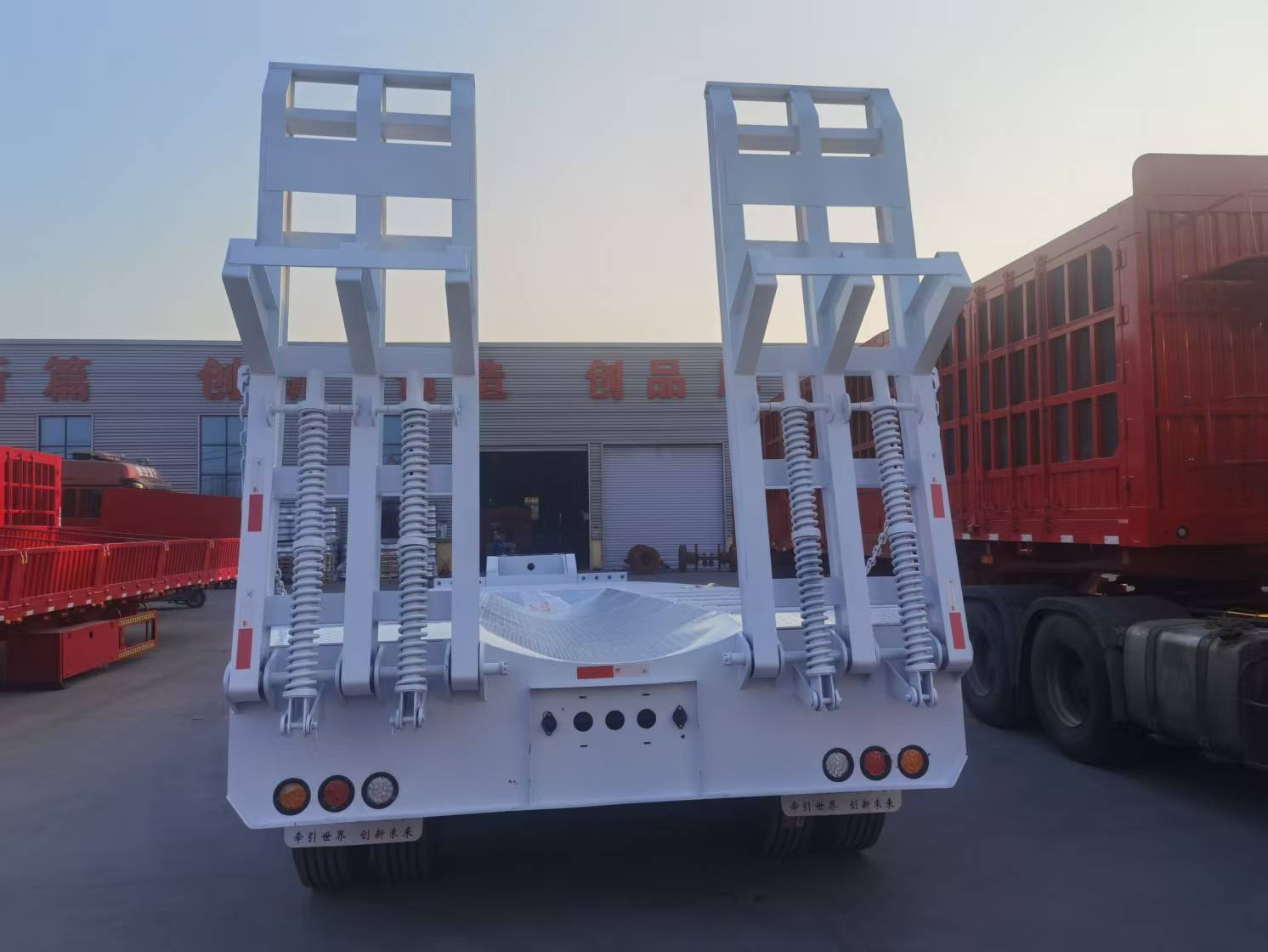

Ramp: Spring ramp
