2 Axle 40ft Flatbed Container Trailer

2 Axle 40ft Flatbed Container Trailer

The 40ft flatbed container trailer used in ports is mainly used as a container transport vehicle, using a tractor to tow the chassis carrying the container to complete the container transshipment work.

The 40ft flatbed container trailer has two longitudinally spaced beams. The cross beams are connected using a cross beam or multiple cross beams, and the cross beams are firmly welded to the longitudinal beams. The frame of the 40ft flatbed container trailer provides a rigid and strong structure for fixing wheels, outriggers, floors or bases, towing pins and suspension systems. The stability of these components depends on the strength of the frame.

2 Axle 40ft Flatbed Container Trailer for Sale In Nigeria

2 Axle 40ft Flatbed Container Trailer for Sale In Nigeria

2 Axle 40ft Flatbed Container Trailer for Sale In Nigeria

Specification of Flatbed Container Trailer

Dimension: 12500*2500*1530 mm

Loading capacity: 60 tons

Axle: 3 axles, Titan 13 tons,16 tons brake lining

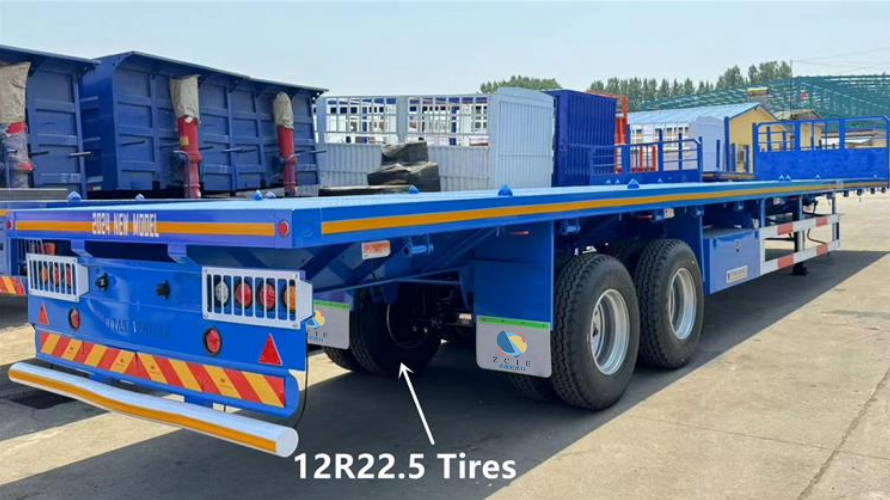

Tire: 12R22.5, 12 units

Bottom plate: 3 mm thick checkered plate

Leaf spring: 13 mm thick, 10 pcs

Suspension: Heavy duty mechanical suspension,8 mm thick,70 mm diameter kingpin

Landing gear: TITAN 28 ton landing gear

Twist lock: 12 units

Light: LED light

Toolbox: 1 PCS

Advantage of 40ft Flatbed Container Trailer

40ft flatbed container trailer uses Q345 high-strength steel to produce trailers. We use double-layer plates at the gooseneck to reinforce it.

40ft flatbed container trailer can carry 60 tons of cargo. There are 6 beams under the platform, which will not deform even if the load is heavy

40ft flatbed container trailer adds two beams in the middle of the main beam, which makes the 40ft flatbed container trailer have greater load-bearing capacity and longer service life.

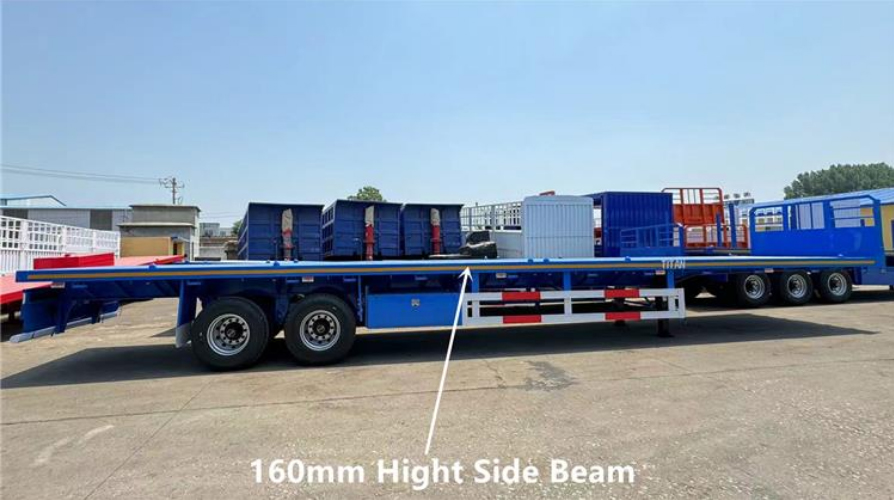

There are 6 beams under the platform, and its side beam height is 160 mm, so the loading capacity is stronger.
